Ultra White Common Cathode 7 Segment LED Display 4 Digit for Oven Controller

Nama merek:	LIGHT-BO
Nomor Model:	LB40381EW-3S-T1-D
MOQ:	1000
harga:	Negotiate
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	20000 PCS/hari

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Shenzhen, Cina

Sertifikasi:

ISO9001&RoHS

Sedang mengemas:

EPE+CARTON

Brand name:

LIGHT-BO

Asal:

Shenzhen

Kemasan rincian:

EPE+CARTON

Menyediakan kemampuan:

20000 PCS/hari

Menyoroti:

common cathode 7 segment LED display

4 digit oven controller display

ultra white LED oven timer

Deskripsi Produk

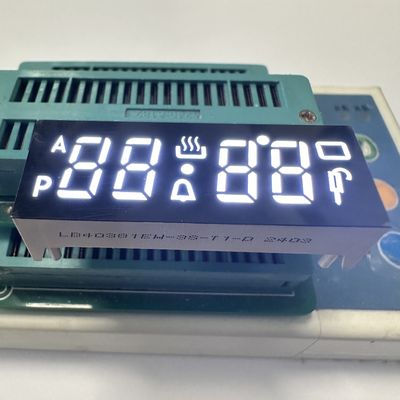

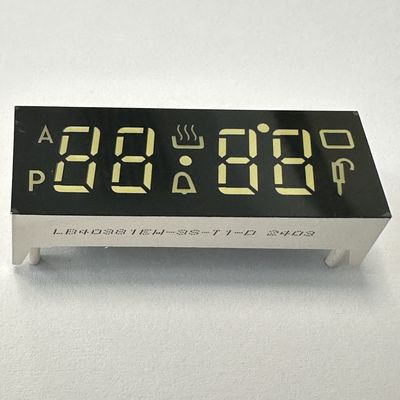

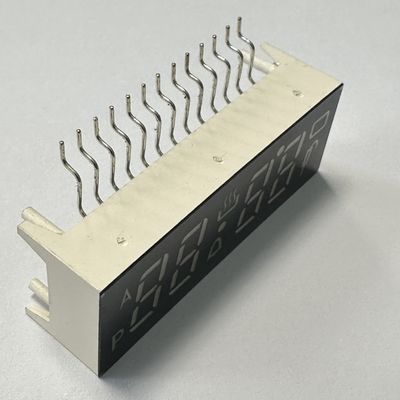

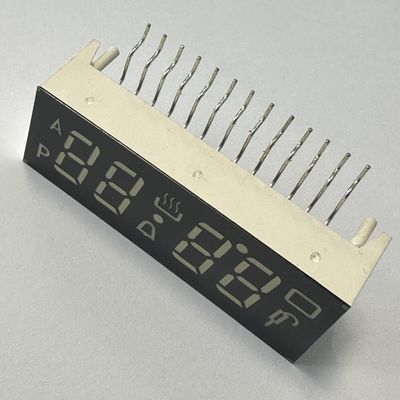

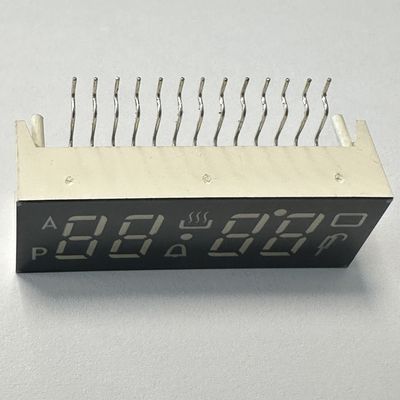

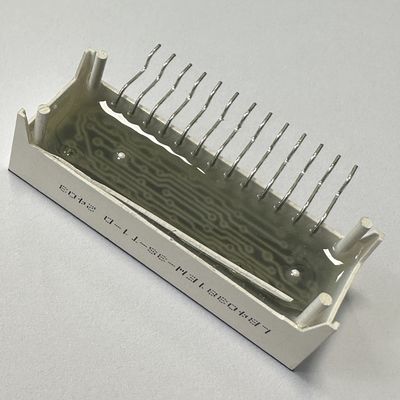

Ultra White Common Cathode 7 Segment LED Display 4 Digit for Oven Controller

Product Overview

This specialized 4-digit 7-segment LED display is engineered to excel in the heat-intensive environments of oven controllers, gas cookers, and cooking timers—featuring ultra white emission for clear, high-contrast readability and extreme temperature resistance (105°C to 120°C).

Core Product Features

Extreme High-Temperature Resistance (105°C-120°C): The display's robust construction—including heat-resistant epoxy encapsulation and high-temp-tolerant LED chips—enables it to withstand the intense, prolonged heat generated by ovens and gas cookers.

Ultra White Emission for Clear Visibility: High luminous intensity, big viewing angle, and good consistency ensure instant recognition of critical values under various kitchen conditions.

Energy Efficiency & Long Lifespan: Low power consumption minimizes energy draw while high-quality components ensure a service life of 50,000+ hours.

Easy Integration & Regulatory Compliance: Common cathode polarity matches standard circuit designs, works with common display driver ICs, and meets RoHS/REACH compliance standards.

Target Applications

Multifunction Digital Oven Controllers

Gas Cookers

Cooking Timers

Air Fryers

Toasters

Induction Cooktops

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical/Optical Characteristics

Note: Multiple color codes available with different specifications

Code: Yellow Green - J

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd

Code: Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.5	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	60	80	mcd

Why Choose This Ultra White 4-Digit Display?

This display solves the core pain point of heat-induced display failure in kitchen appliances. Its 105°C-120°C tolerance ensures reliable performance where standard displays break down, keeping critical timer/temperature values readable.

Ultra white emission and a big viewing angle prioritize user convenience, even in busy, well-lit kitchens. Common cathode polarity, IC compatibility, and compliance streamline manufacturing and global distribution for appliance brands.
