7-Segment Ultra Blue/Green LED Display for Refrigerator Controllers

7-Segment Ultra Blue/Green LED Display for Refrigerator Controllers

Nama merek:	LIGHTBO
Nomor Model:	LB11931IBJ1S-T2
MOQ:	1000
harga:	Negotiate
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	20000pcs/hari

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Shenzhen, Cina

Sertifikasi:

ISO9001&RoHS

Peringkat:

Penggunaan:

Luar Ruangan/Dalam Ruangan

Warna LED:

Biru Sangat Terang/Hijau

Polaritas:

Anoda umum

Dimensi layar:

Ukuran Khusus

Arus Maju:

Kemasan rincian:

EPE+CARTON

Menyediakan kemampuan:

20000pcs/hari

Menyoroti:

7-segment LED display for refrigerator

ultra blue green LED display

custom refrigerator controller display

Deskripsi Produk

7-Segment Ultra Blue/Green LED Display for Refrigerator Controllers

Product Specifications

Specification Item	Details	Notes / Options
Part Numbering	LB11931IBJ1S-T2	Custom part number printing supported
Standard Color	Ultra Blue/Green	White, Blue, Pure Green, Yellow-Green, Orange, etc.
Polarity	Common Cathode	Common Anode
Lifespan	>80,000 hours
Free Samples	Available
Sample Lead Time	5-7 working days	Tooling samples: 15-20 working days
Production Lead Time	15-20 working days	Varies with order quantity
OEM/ODM Services	Supported	Based on customer's drawing or idea
LOGO Printing	Supported	Based on customer's drawing or idea
Minimum Order Quantity (MOQ)	1,000 PCS	100-500 PCS acceptable for initial trial orders

Product Features

High-Contrast Readability: Crisp white segments on a deep black background deliver sharp, unambiguous visibility.
High-Intensity Illumination: Superior luminous intensity ensures excellent readability even in brightly lit environments.
Optimized Power & Reliability: Engineered for low power consumption and unwavering long-term performance.
Seamless Aesthetic: Uniformly continuous segments create a consistent and clean visual display.
Simplified Integration: Designed for easy PCB mounting and direct IC compatibility for quick assembly.
Eco-Conscious Compliance: Fully conforms to RoHS environmental standards.

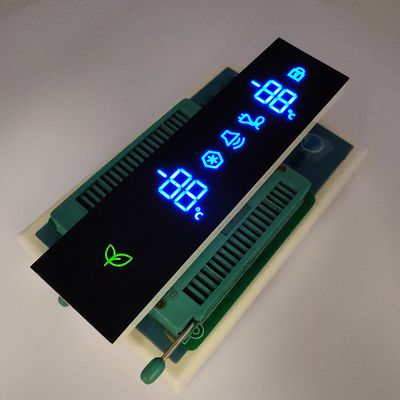

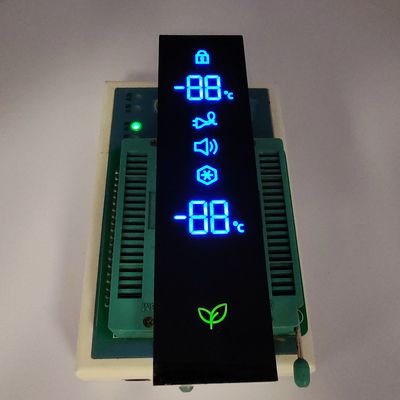

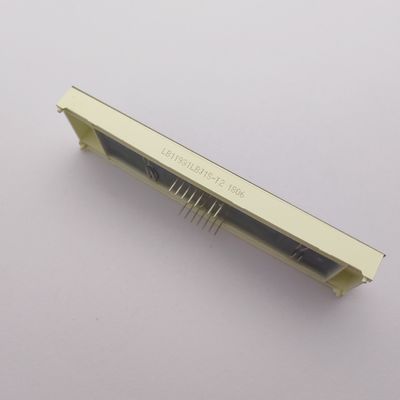

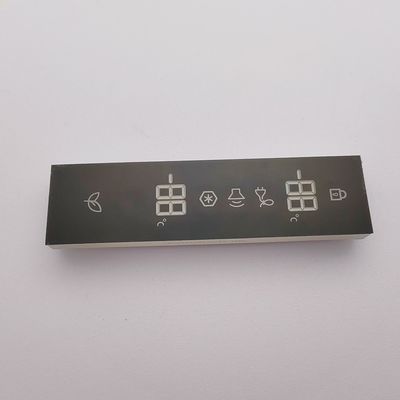

Product Images

Technical Parameters

Code: Yellow Green - J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Absolute Maximum Ratings (Ta=25 ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Delivery Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
EDT (days)	5	15	pending

Company Overview

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: LIGHT-BO) was established in 2006, A company that integrates R & D, manufacturing and sales of optoelectronics LED display. Our products include: 7 Segment LED Display, Alphanumeric LED Display, DOT Matrix LED Display, LED Backlight, Through Hole LEDs, SMD LEDs and so on. With features of low cost, low power consumption, long lifetime, stable performance, our products are widely used for home appliances (especially kitchen home appliances like oven, hood, refrigerator/freezer, etc.) and instrument panels (temperature, humidity, counter, process, etc.).

Product Applications

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7-segment LED displays, SMD LED displays, dot matrix LED displays, arrow LED displays, custom design LED displays, LED light bars, through-hole LEDs, SMD LEDs, LED backlights, and so on.
